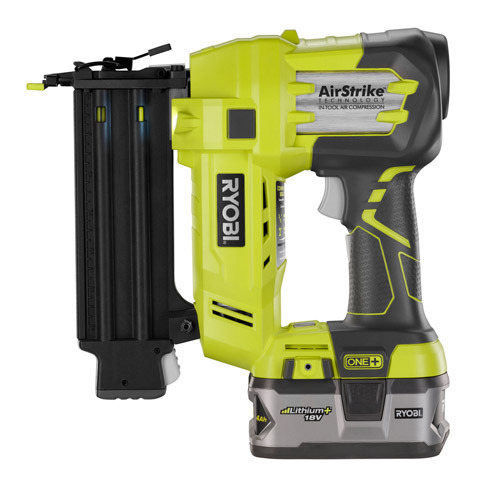

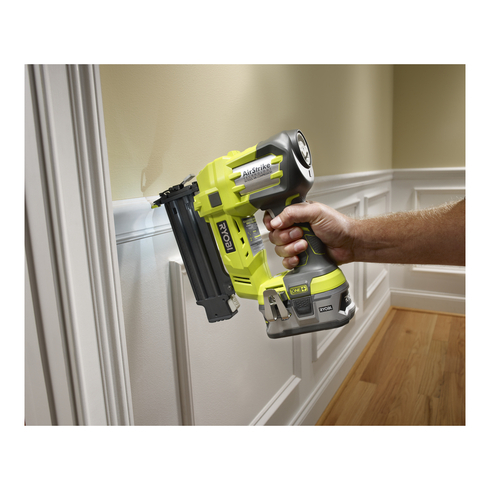

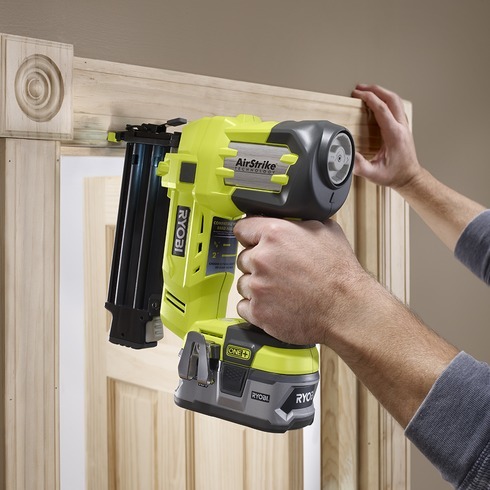

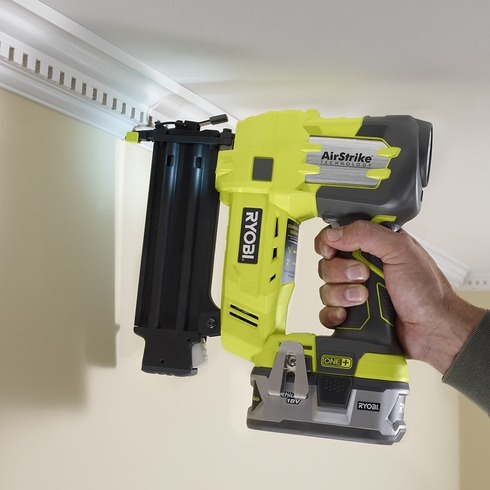

18V ONE+™ AirStrike™ 18GA Brad Nailer

Model: #P320 | Home Depot Sku #: 1000681783

The 18V ONE+™ System introduces the next generation in cordless convenience. This 18 gauge brad nailer features AirStrike™ Technology, which eliminates the need for noisy compressors, bulky hoses or expensive gas cartridges. This means faster setup and easier maneuvering on the job site. Tackle virtually any trim job with the capacity to drive up to 1,700 nails per charge using the new and improved P108 4Ah High Capacity LITHIUM+™ battery (sold separately).

The 18V ONE+™ 18GA Cordless Brad Nailer is sold as a bare tool, allowing you to build on your ONE+™ collection without spending additional money on batteries and chargers with each tool purchase. Best of all, like every RYOBI® 18V ONE+™ blue or green tool, this AirStrike Brad Nailer works with any 18V ONE+™ battery. Upgrade to lithium-ion or LITHIUM+™ batteries for lighter weight and better performance.

Features
Specs
Includes
FAQ's
Manuals
Parts
AirStrike™ Technology

AirStrike™ Technology provides cordless convenience, eliminating the need for a compressor and bulky air hose

Mode Variability

Selectable drive switch with single sequential or contact actuation mode; Single sequential actuation mode is used for precision placement and contact actuated mode

Adjustment Applications

Tool-less depth-of-drive adjustment helps protect work surface and allows proper setting of nail heads, and convenient adjustment dial regulates air pressure for optimum results

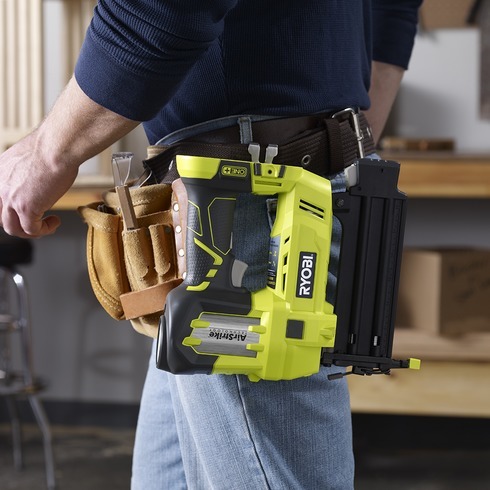

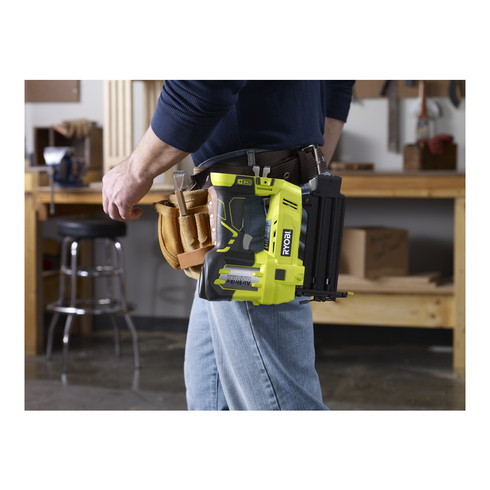

Belt Hook

Belt hook mounts to right or left side for added convenience

  • Grip-Light technology engages LED by grasping the tool handle

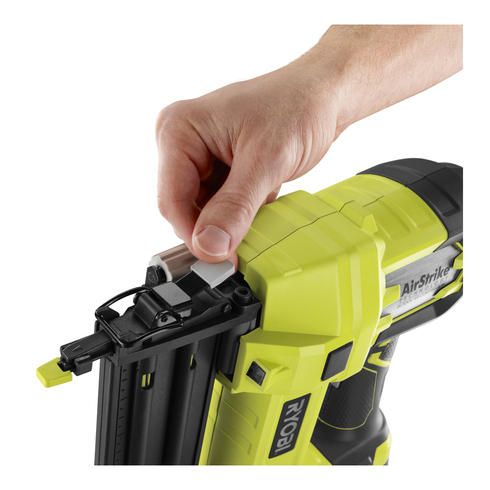

  • Toolless jam release for easy access to clear nails
  • Low nail indicator to quickly and easily see when it is time to re-load
  • 2 non-marring pads to keep work surface free of tool marks
  • Battery: 18V
  • Nail Gauge: 18 Gauge
  • Magazine Capacity: 105 Brand Nails
  • Nail Range: 5/8" to 2"
  • Nails per Charge using P108 Battery: 1700
  • Fastener Collation: Glue Strip
  • Tool Weight: 5.0 lbs
  • P320 Brad Nailer
  • (500) 1-1/4” 18 Gauge Brad Nails
  • Belt Clip
  • Operator's Manual

My tool sounds like it is cycling, but it is not actually delivering a nail. What is the problem?

Most likely the air adjustment dial has been turned up too far. Turn the dial back and cycle the tool a few times into scrap material and it should reset.

Canister Vac - Model p3200


P3200_956_eng.pdf
Published: 07-19-2006
Filesize: 1.06 MB


P3200_956_fr.pdf
Published: 07-19-2006
Filesize: 1.06 MB


P3200_956_sp.pdf
Published: 07-19-2006
Filesize: 1.06 MB


P3200_956_r.pdf
Published: 08-25-2006
Filesize: 5.76 MB


18 ga Cordless Brad Nailer - Model p320/p320vn


P320_399_trilingual_11.pdf
Published: 03-19-2020
Filesize: 4.99 MB


P320_552_addendum_trilingual_01.pdf
Published: 02-21-2013
Filesize: 415 KB


P320_399_r_05.pdf
Published: 09-19-2020
Filesize: 1.79 MB


P320_P320VN_584_addendum_trilingual_02.pdf
Published: 10-30-2019
Filesize: 350 KB


For your RYOBI Power Tool replacement part needs, simply click the following link to access replacement parts schematics, as well as, on-line parts ordering through the RYOBI master parts distributor.

For those customers that prefer ordering by phone, simply contact the RYOBI master parts distributor at 1-877-634-5704, and place your order over the phone.

If you prefer to order online please click the link below. Please note that all prices are in USD and will be converted to CAD by your credit card company at the exchange rate set by your financial institution.

VISIT PARTS STORE
