10 IN. COMPOUND MITRE SAW WITH LASER

Model: #TS1345L | Home Depot Sku #: 1000748699

Buy at The Home Depot
Large 9f0454dc c6c2 409d 970b 22a55adb4d65
Large 94d6bf74 0939 458c a483 4b34e73d9702
Large bea06438 b896 46ba b985 aee995b4ec06
Large 26f1e7f1 cbf1 4dea 9015 0ca3edcb1b54
Large d90b8819 1058 4dcd aa16 e84cbfdd1904
  • Tiny 9f0454dc c6c2 409d 970b 22a55adb4d65
  • Tiny 94d6bf74 0939 458c a483 4b34e73d9702
  • Tiny bea06438 b896 46ba b985 aee995b4ec06
  • Tiny 26f1e7f1 cbf1 4dea 9015 0ca3edcb1b54
  • Tiny d90b8819 1058 4dcd aa16 e84cbfdd1904

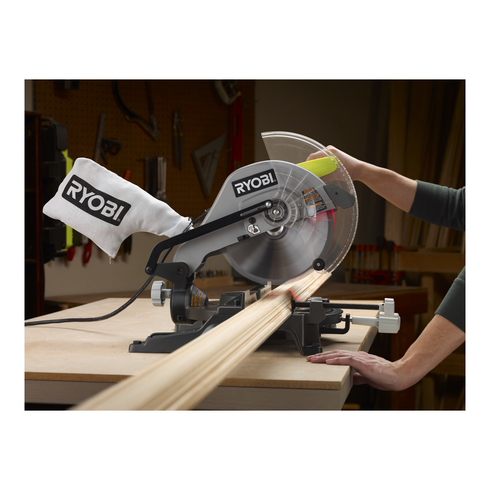

The RYOBI 14 Amp 10 in. Compound Miter Saw is built around a heavy-duty motor that delivers up to 5,000 RPM, making it great for a host of tough cutting applications. Its carbide-tipped blade changes with a single wrench and a dual-view bevel scale helps provide a clear line of sight from either side. It miters to 45° left and right with stops at 0°, 15°, 22.5°, 30° and 45° and it is equipped with an electric brake that halts the blade in seconds for added safety. A horizontal D-handle improves comfort and control.

  • share

Features
Specs
Includes
Manuals
Parts
List 6f5cad39 b384 4314 b40c a561693777a1
  • Heavy duty 14 AMP Motor for a variety of cuts
  • Adjustable Exactline® laser alignment system accurately aligns cut line with blade
  • Fixed laser runs on two (2) AAA batteries and switches on independent of the saw
  • Carbide-tipped blade
  • 9 ball detent stops at the most common miter cutting angles
  • Electric brake stops the blade in seconds
  • Machined cast-in miter scale for accurate table alignment
  • Horizontal “D” handle for improved comfort
  • Spindle lock for easy single wrench blade change
  • Motor: 120V ~ 60 Hz 14 Amps Motor Speed: 5,500 r/min. (RPM)
  • Dust Port: 1-1/4"
  • Blade Arbor: 5/8"
  • Blade Diameter: 10"
  • Baseboard against fence: 3-1/2"
  • Crown molding laying flat: 4-5/8" (Bevel 33.9º x Mitre 31.6º)
  • 90º mitre cut: 2" x 6" or 4" x 4"
  • 45º mitre cut: 2" x 4"
  • 45º bevel cut: 2" x 6"
  • TS1345L Compound Mitre Saw with Laser and Carbide-tipped Blade
  • Blade Wrench
  • Dust Bag
  • Work Clamp
  • (2) AAA Batteries
  • Operator’s Manual

10 in. Compound Miter Saw - Model ts1345l


Ts1345l 892 r 02
TS1345L_892_r_02.pdf
Published: 10-09-2015
Filesize: 548 KB

Ts1345l 892 trilingual
TS1345L_892_trilingual.pdf
Published: 06-05-2018
Filesize: 24.1 MB

For your RYOBI Power Tool replacement part needs, simply click the following link to access replacement parts schematics, as well as, on-line parts ordering through the RYOBI master parts distributor.

For those customers that prefer ordering by phone, simply contact the RYOBI master parts distributor at 1-877-545-4099, and place your order over the phone.

If you prefer to order online please click the link below. Please note that all prices are in USD and will be converted to CAD by your credit card company at the exchange rate set by your financial institution.

VISIT PARTS STORE
