18V ONE+™ 3-SPEED ¼ IN. IMPACT DRIVER

Model: #P237

Large 9943700b ac52 449b 89e0 be1f51861592
Large 82899bd9 a4c9 4232 853c 31ec7f38e725
Large ef9f4d3c 96cc 4d50 83fa 24427f8e6279
Large c9ff08e6 78f8 46fd b6aa b4840494777a
Large a482ab54 ab0b 46d1 8598 16c52df098e2
  • Tiny 9943700b ac52 449b 89e0 be1f51861592
  • Tiny 82899bd9 a4c9 4232 853c 31ec7f38e725
  • Tiny ef9f4d3c 96cc 4d50 83fa 24427f8e6279
  • Tiny c9ff08e6 78f8 46fd b6aa b4840494777a
  • Tiny a482ab54 ab0b 46d1 8598 16c52df098e2

The 18-Volt ONE+ Impact Driver features 3-Speed settings to customize the torque settings to fit your various fastening needs. On high speed this impact drive produces 1,800 lbs. of torque. The unique impact mechanism to drive the longest deck screws or largest lag screws with ease. You'll be able to get through all your projects in no time. The RYOBI 18V ONE+™ 3-Speed ¼ in. Impact Driver works with any 18V ONE+ battery (sold separately) and is a part of the ONE+™ System of over 70 great tools that all work with the same 18V battery platform.

  • share

Features
Specs
Manuals
Parts
3-speed selector switch adjusts torque to power through a variety of applications
  1. High Speed: 1,800 in lbs
  2. Medium speed: 1,100 in lbs
  3. Low Speed: 400 in lbs
3-speed selector switch offers greater control over a wide ranger of fastening applications
  1. 0-3,200 RPM for maximum torque
  2. 0-2,500 RPM for controlling driving depth and fastener tension
  3. 0-1,700 RPM for precision fastening
Tri-beam LED provides optimum illumination and eliminates shadows on work surface
MAGTRAY magnetic holder for convenient placement of screws and bits
New and improved GRIPZONE overmold for optimum grip and user comfort

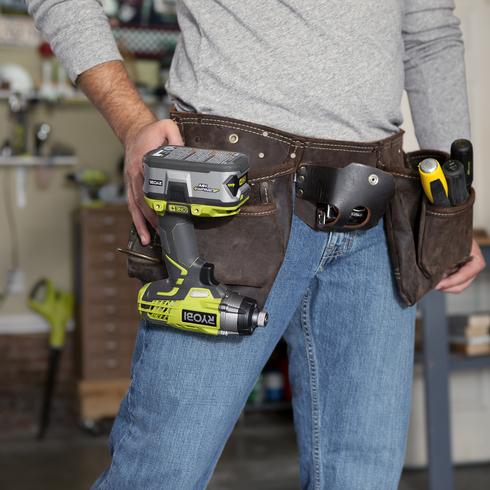

Belt clip mounts on either side for convenience
  • Battery: 18V
  • RPM: High: 0–3,200 RPM
  • Medium: 0–2,500 RPM
  • Low: 0–1,700 RPM
  • Torque: 1,800 in-lbs.
  • Impacts Per Minute: 0–3,400 IPM
  • Tool Weight: 2.75 lbs.

*No Load Speed

18 Volt Impact Driver - Model p237


P237 709 trilingual 06
P237_709_trilingual_06.pdf
Published: 10-27-2015
Filesize: 3.48 MB

P237 709 r 02
P237_709_r_02.pdf
Published: 03-15-2016
Filesize: 785 KB

Click the link below to access power tool replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4099, and place your order over the phone.

Visit Ryobi Power Tools Parts Store
