40V-X Expand-It String Trimmer

Model: #RY40220

Large b527e57d 81a6 4f8a 8e6c 00265f2657ef
Large 13983fa3 6636 412c 9a21 82ea4844b80e
Large de7f607a d2a6 4f90 adfa 6802a9a41a33
Large 16c10cc4 5271 4a60 ba8a 952c8b2ef504
Large 53e7a1b6 7922 4019 b788 07447f9ac845
Large 5a72cd9e f763 4584 9939 37551e0f3c9f
Large 38183bae 372a 4d23 a7bb 8a298a0be09a
Large 4e930432 cc27 4b11 a557 008482fc7305
Large 1b68ab38 2752 4684 85f7 e7a84e23032a
Large 0d64ce9d 85ae 4dc5 93e1 9e89fd1d34e7
Large 5f1241c4 79bb 4f3e 8a25 5f16cbc01116
  • Tiny b527e57d 81a6 4f8a 8e6c 00265f2657ef
  • Tiny 13983fa3 6636 412c 9a21 82ea4844b80e
  • Tiny de7f607a d2a6 4f90 adfa 6802a9a41a33
  • Tiny 16c10cc4 5271 4a60 ba8a 952c8b2ef504
  • Tiny 53e7a1b6 7922 4019 b788 07447f9ac845
  • Tiny 5a72cd9e f763 4584 9939 37551e0f3c9f
  • Tiny 38183bae 372a 4d23 a7bb 8a298a0be09a
  • Tiny 4e930432 cc27 4b11 a557 008482fc7305
  • Tiny 1b68ab38 2752 4684 85f7 e7a84e23032a
  • Tiny 0d64ce9d 85ae 4dc5 93e1 9e89fd1d34e7
  • Tiny 5f1241c4 79bb 4f3e 8a25 5f16cbc01116

The RYOBI 40V-X Expand-it String Trimmer delivers Gas-Like Power™ without the hassle of gas and oil. This powerful trimmer features a REEL-EASY bump feed string head for fast and easy reloading; and premium .080 in. twisted dual line for cutting through brush and thicker grass. The RYOBI 40V-X Expand-it String Trimmer is the first cordless system that is also attachment capable. Add the Expand-it cultivator, blower or even edger to the bottom shaft of the RYOBI 40V-X String Trimmer power head to quickly transform your lawn from overgrown to manicured. This string trimmer puts users in control with a variable speed trigger and adjustable cutting width. The entire RYOBI 40V family runs off of the same 40V lithium-ion battery platform. The RYOBI 40V-X Expand-it String Trimmer is backed by a RYOBI 5 year warranty.

  • share


Product Videos

×
×
×
Features
Specs
Includes
FAQ's
Manuals
Parts
List e5544da4 463a 4220 becd c7b2a7315be2

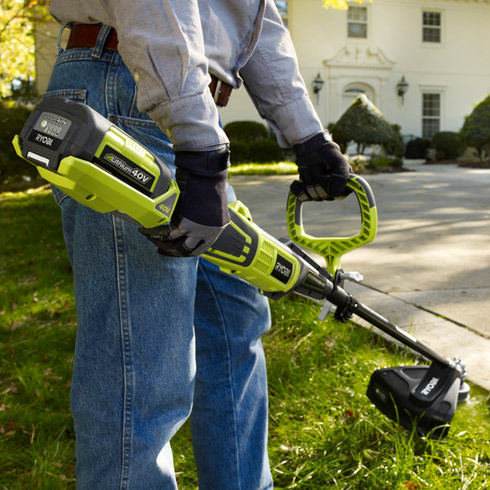

GAS-LIKE POWER™

List 36641296 1371 4bd8 962f 30a7bc59698c

Attachment Capable: Accepts Universal Outdoor Attachments

List b62b73ef 9269 4b8b bfe1 a7e442f1dfb0

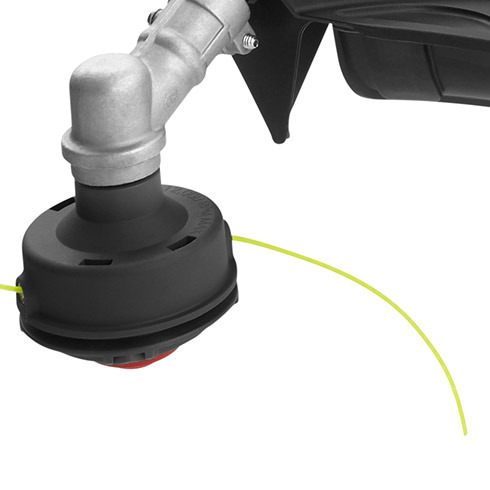

Premium .080 in. Twisted Dual Line

List de3b92d9 20be 434a 86b0 8fd80a8a42de

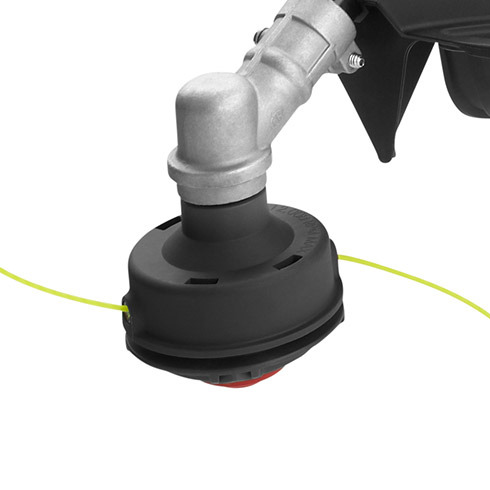

REEL-EASY™ Bump-feed String Head For Fast And Easy Reloading

List e6faa398 1587 46e2 9573 a2db4e62d460

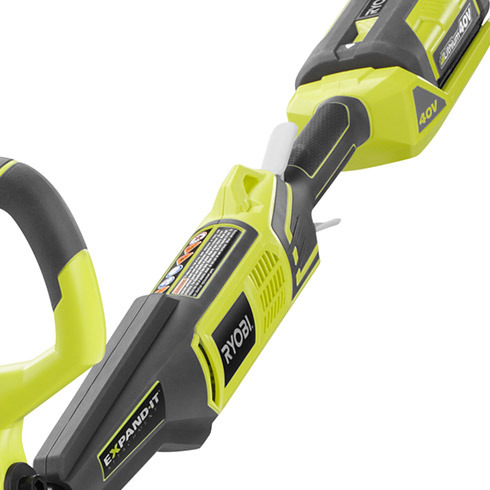

Variable Speed Trigger Allows More Powerful Cutting Or Longer Battery Life

List 12d10e74 b720 4319 8dc8 3946ad6cff35

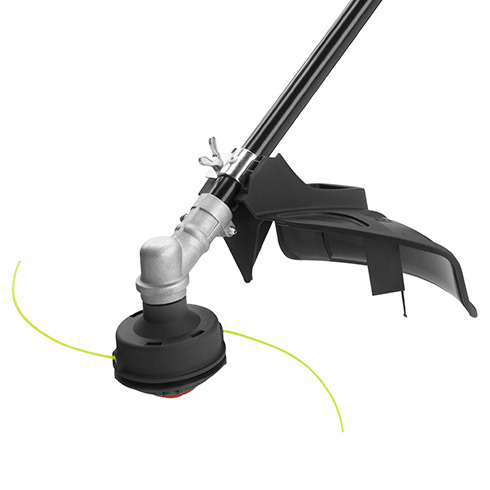

13-15 in. Adjustable Cutting Width For Longer Run Time Or Wider Cutting Path

List 25168e47 6a0e 4bfb 9992 80fe654ce123

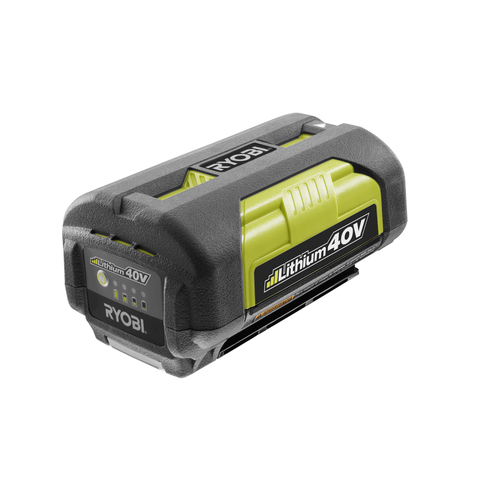

40V lithium-ion high capacity battery and 90 min. charger included

List da21f5d2 1473 407b 9160 c5e9b769306a

5 Year Limited Tool Warranty

  • Power Source: 40V Li-ion Battery
  • Cutting Swath: Adjustable 13-15 in. cutting width
  • Line: .080 in. twisted dual line
  • Line Advancement: REEL-EASY bump feed
  • Attachment Coupler: Universal Attachment Coupler
  • Trigger: Variable Speed
  • Yard Size: Up to 1 Acre
  • RYOBI 40V X Power Head
  • Expand-It String Trimmer Attachment
  • Straight Shaft Grass Deflector
  • 40V Lithium-Ion Battery
  • 40V Charger
  • Operator’s Manual

How do I advance the line on my REEL-EASY™ String Head?

Line advance is controlled by tapping the string trimmer head on grass while running engine at full throttle

  • Run the engine at full throttle
  • Tap the knob on ground to advance line. The line advances each time the knob is tapped. Do not hold the knob on the ground

NOTE: The line trimming cut-off blade on the grass deflector will cut the line to the correct length

NOTE: If the line is worn too short, you may not be able to advance the string by tapping it on the ground. If so, stop the engine and manually advance the line.

How do I attach the front handle on my RYOBI 40V-X String Trimmer?

  • Loosen and remove the wing bolt and washer from the handle.
  • Install the handle on the power head shaft.
  • Adjust handle up or down, if necessary, to desired operation position.
  • Reinstall the washer and wing bolt. Tighten wing bolt to secure.

How do I install my attachment to my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if using a RYOBI Gas Power Head); remove the battery (if using the RYOBI 40V Power Head).
  • Loosen the knob on the coupler of the power head shaft and remove the end cap from the attachment (black rubber piece with loop hole for hanging).
  • Push in the silver button located on the attachment shaft. Align the button with the guide recess on the Power Head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole.

NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.

  • Tighten the knob securely.

How do I manually advance the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will not be harmed
  • Push the knob in while pulling on line(s) to manually advance the line

How do I remove the attachment from my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if a gas unit), remove the battery (if using RYOBI 40V Power Head)
  • Loosen the knob at the connection point
  • Push in the button and twist the shafts to remove and separate the Power Head from the Attachment

How do I replace the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will be safe while replacing the line.
  • Rotate the spool clockwise as necessary to align the arrows on the spool.
  • Cut one piece of trimmer line at approx. 20ft. in length. Insert the line in the eyelet on the string trimmer housing. Push until the end of the line comes out the opposite side of the string head. Pull the line from the other side until equal amounts of line are on both sides of the spool.
  • Rotate the spool clockwise to wind the line on the spool until approx. 6 in. of line is showing on each side.
  • Push the spool retainer down while pulling on line(s) to manually advance line and to check for proper assembly of the on the string head.

How do I start and stop my RYOBI Cordless String Trimmer?

To Start:

  • Press and hold the lock-out button.
  • Depress the switch trigger

To Stop:

  • Release the switch trigger to stop the string trimmer.
  • Upon release of the switch trigger, the lock-out button will automatically reset to the locked position.

How do I store my RYOBI Cordless String Trimmer?

  • Remove the battery from the string trimmer before storing.
  • Clean all foreign material from the trimmer.
  • Store the unit in a place that is inaccessible to children and away from corrosive agents such as garden chemicals and de-icing salts.

What do I do if my RYOBI Cordless String Trimmer won’t start?

Possible Cause—Battery is not secure

  • To secure the battery pack, make sure the e battery pack is snapped into place.

Possible Cause—Battery is not charged:

  • Charge the battery pack according to the instructions included with your battery.

What is the best way to cut weeds and grass using my string trimmer?

  • Keep your string trimmer tilted toward the area being cut
  • Pass the unit from left to right (if using a curved shaft string trimmer) and from right to left (if using a straight shaft string trimmer). By following these directional cutting paths, you will avoid having debris and grass clippings from being directed back at yourself.
  • Use the top of the line to do the cutting. Do not force the string head into uncut grass; this could cause the trimmer to bog down.
  • Avoid trees, shrubs wire and picket fences.

How do I attach the grass deflector on my RYOBI Cordless String Trimmer?

  • Remove the battery.
  • Remove the plastic hardware bag from the grass deflector.
  • Fit the grass deflector over the string head.
  • Line up the screw holes in the grass deflector with the holes in the motor housing.
  • Install supplied screws and tighten by turning clockwise with a phillips screwdriver.

40V-X Expand-It String Trimmer - Model ry40220


Ry40002 720 trilingual
RY40002_720_trilingual.pdf
Published: 05-28-2014
Filesize: 3.03 MB

Ry15523a 799 trilingual 03
RY15523A_799_trilingual_03.pdf
Published: 05-28-2014
Filesize: 604 KB

Click the link below to access outdoor products replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4110, and place your order over the phone.

Visit Ryobi Outdoor Parts Store
