24V Cordless String Trimmer/Edger

Model: #RY24210A | Home Depot Sku #: 1000680512

Buy at The Home Depot
Large 53297233 0f88 44d6 a8af fbdb6dd37526
Large 4e37a3c0 6885 4d29 91a5 0e8f2be1a85e
Large 0467a7f4 ec8b 446b 98ac df14d64e33fa
Large 07849c46 54c6 464c 8ddc 49b4244ca699
Large 917e889e a36a 4484 ba2b 29fec31ebe75
Large db09a3dd 1ca4 431f ad0d f0ea7931bf3b
Large 1a858a2c 3fe4 44aa a600 2af1f204c322
Large f6c6dc99 b6db 4925 85bd a7dd02559abd
Large ba502e39 e487 415a b015 d8d82b3b626c
  • Tiny 53297233 0f88 44d6 a8af fbdb6dd37526
  • Tiny 4e37a3c0 6885 4d29 91a5 0e8f2be1a85e
  • Tiny 0467a7f4 ec8b 446b 98ac df14d64e33fa
  • Tiny 07849c46 54c6 464c 8ddc 49b4244ca699
  • Tiny 917e889e a36a 4484 ba2b 29fec31ebe75
  • Tiny db09a3dd 1ca4 431f ad0d f0ea7931bf3b
  • Tiny 1a858a2c 3fe4 44aa a600 2af1f204c322
  • Tiny f6c6dc99 b6db 4925 85bd a7dd02559abd
  • Tiny ba502e39 e487 415a b015 d8d82b3b626c

Tackle your yard chores with ease using the RYOBI 24V Li-ion Cordless String Trimmer/Edger. The 24V Trimmer’s 11-13 inch adjustable cut swath allows you to choose to trim longer or a cut a wider path and its variable speed trigger provides user control. Rid your lawn of weeds and unsightly tall grass with the RYOBI 24V Li-ion Cordless String Trimmer/Edger, backed by a RYOBI 3 year warranty.

  • share


Product Videos

×
Features
Specs
Includes
FAQ's
Manuals
Parts

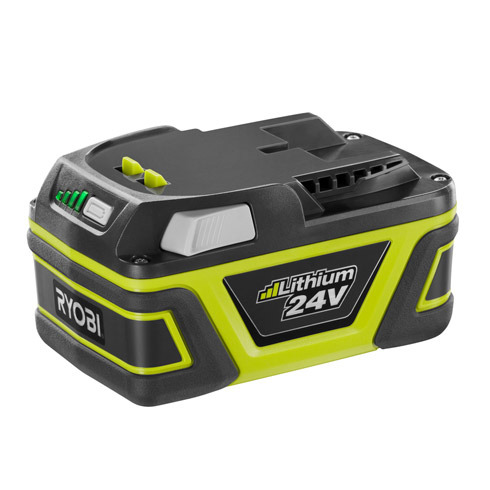

List 0a9e828c 83ad 475b b5c1 476fafb762eb

24V Lithium-ion Battery for Advanced Run Time

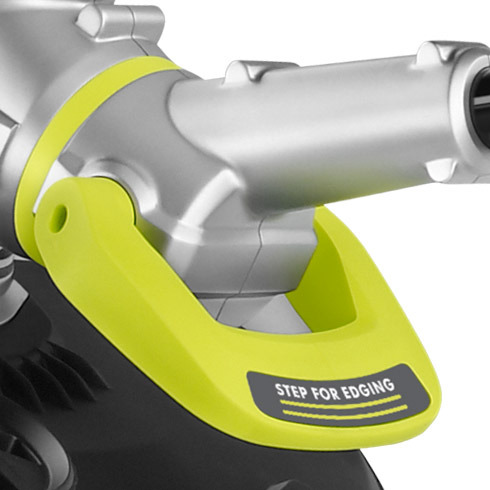

List 359caba7 9805 4588 92e6 e65d277a017d

Foot pedal adjustment converts pivoting head from trimmer to edger

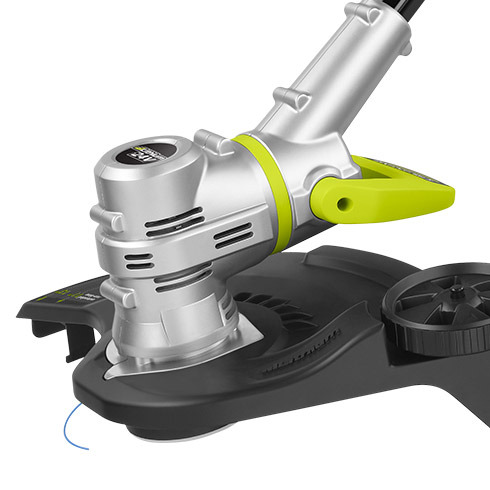

List 6229ea0a 264a 40d9 8f95 0750301031d2

.065 in. single line

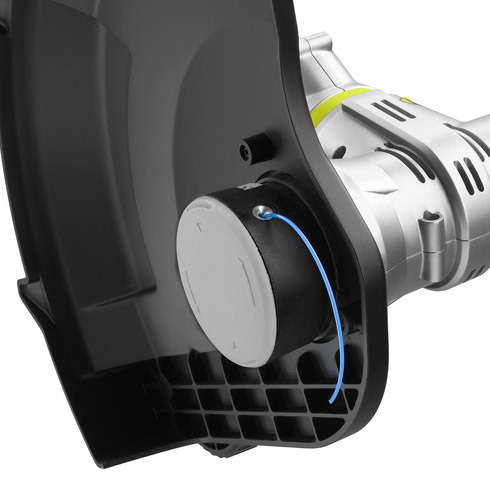

List a7e6417e 566a 4240 be62 2640a50fd78b

Auto feed string head for user control

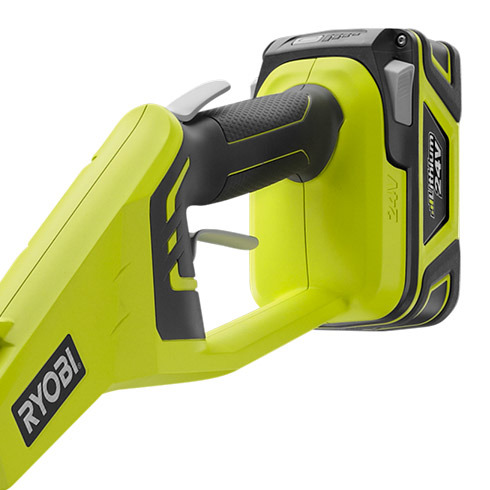

List c007f635 f551 4dab 8618 632ee7c2bf88

Variable speed trigger allows more powerful cutting or longer battery life

List 5c37e26f a80a 42cf 8495 3e90e01f376d

11 – 13 in. adjustable cutting width for longer run time or wider cutting path

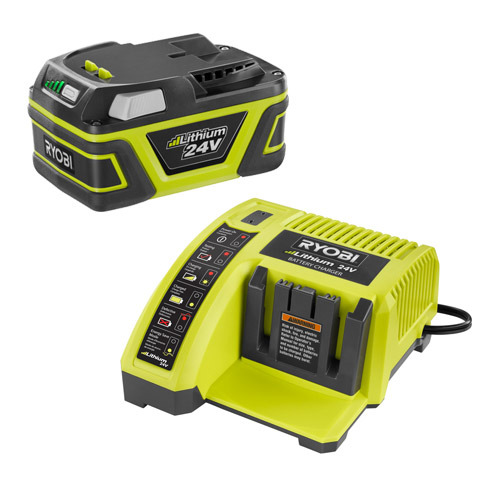

List 8e697df7 2ed6 4a16 b793 217b8ed48a9e

24V li-ion compact battery and 1 hour charger included

  • Motor: 24V Lithium-ion battery
  • Cutting Swath: Adjustable 11-13 inch cutting width
  • Shaft: Straight shaft pivoting trimmer head for edging
  • Yard Size: Up to 2/3 Acre
  • Line Advancement: Auto-Feed
  • Line: .065 in. line
  • Weight: 6.0 lbs.
  • 24V Power Head
  • String Trimmer/Edger Attachment
  • 24V Li-ion Battery
  • 24V Charger
  • Grass Deflector
  • Operator’s Manual

How do I advance the line on my RYOBI Cordless String Trimmer?

NOTE: Your RYOBI Cordless String Trimmer is equipped with an auto-feed head. Bumping the head to try to advance the line will damage the trimmer and void the warranty.

  • With the trimmer running, release the switch trigger.
  • Wait two seconds, and press the switch trigger again.

NOTE: The line will extend approximately ¼ in. with each stop and start of the switch trigger until the line reaches the length of the cut-off blade.

  • Resume trimming.

How do I attach the grass deflector on my RYOBI Cordless String Trimmer?

  • Remove the battery.
  • Remove the plastic hardware bag from the grass deflector.
  • Fit the grass deflector over the string head.
  • Line up the screw holes in the grass deflector with the holes in the motor housing.
  • Install supplied screws and tighten by turning clockwise with a phillips screwdriver.

How do I manually advance the line on my RYOBI Cordless String Trimmer?

  • Remove the battery.
  • Push the black button located on the string head while pulling on the line to manually advance the line.

How do I replace the spool on my RYOBI Cordless String Trimmer?

NOTE: Use only .065 in. round or .080 in. twisted monofilament line.

  • Remove the battery pack.
  • Push in tabs on side of spool retainer.
  • Pull spool retainer up to remove.
  • Remove the old spool.
  • To install the new spool, make sure the line is captured in the slot on the new spool. Make sure the end of the line is extended approximately 5 in. beyond the slot.
  • Install the new spool so that the line and slot align with the eyelet in the string head. Thread the line into the eyelet.
  • Pull the line extending from the string head so the line releases from the slot in the spool. Reinstall the spool retainer by dressing tabs into slots and pushing down until spool retainer clicks into place.

How do I start and stop my RYOBI Cordless String Trimmer?

To Start:

  • Press and hold the lock-out button.
  • Depress the switch trigger

To Stop:

  • Release the switch trigger to stop the string trimmer.
  • Upon release of the switch trigger, the lock-out button will automatically reset to the locked position.

How do I switch from trimming to edging on my RYOBI 24V or 40V String Trimmer?

  • Remove the battery pack.
  • Step down on the foot pedal.
  • Rotate the trimmer head counterclockwise placing the tool in the edger position.

What do I do if my RYOBI Cordless String Trimmer won’t start?

Possible Cause—Battery is not secure

  • To secure the battery pack, make sure the e battery pack is snapped into place.

Possible Cause—Battery is not charged:

  • Charge the battery pack according to the instructions included with your battery.

What is the best way to cut weeds and grass using my string trimmer?

  • Keep your string trimmer tilted toward the area being cut
  • Pass the unit from left to right (if using a curved shaft string trimmer) and from right to left (if using a straight shaft string trimmer). By following these directional cutting paths, you will avoid having debris and grass clippings from being directed back at yourself.
  • Use the top of the line to do the cutting. Do not force the string head into uncut grass; this could cause the trimmer to bog down.
  • Avoid trees, shrubs wire and picket fences.

How do I attach the front handle on my RYOBI 40V-X String Trimmer?

  • Loosen and remove the wing bolt and washer from the handle.
  • Install the handle on the power head shaft.
  • Adjust handle up or down, if necessary, to desired operation position.
  • Reinstall the washer and wing bolt. Tighten wing bolt to secure.

How do I replace the line on my RYOBI Cordless String Trimmer?

  • Remove the battery pack.
  • Remove the spool from the string head.
  • NOTE: Remove any old line remaining on the spool.
  • Cut a piece of line approximately 9 ft. long. Use only .065 in. round or .080 in. twisted monofilament line.
  • Insert the line into the anchor hole in the upper part of the spool. Wind the line around the supper part of the spool clockwise, as shown by the arrows on the spool. Place line in the slot on upper spool flange, leaving about 6 in. extended beyond the slot. Do not overfill. After winding the line, there should be at least ¼ in. between the wound line and the outside edge of the spool.
  • Replace the plastic retainer spool and the spool cap.

How do I store my RYOBI Cordless String Trimmer?

  • Remove the battery from the string trimmer before storing.
  • Clean all foreign material from the trimmer.
  • Store the unit in a place that is inaccessible to children and away from corrosive agents such as garden chemicals and de-icing salts.

RYOBI 24V String Trimmer/Edger - Model ry24210a


Ry24001 ry24021 214 trilingual 01
RY24001_RY24021_214_trilingual_01.pdf
Published: 05-05-2014
Filesize: 4.29 MB

Click the link below to access outdoor products replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4110, and place your order over the phone.

Visit Ryobi Outdoor Parts Store
