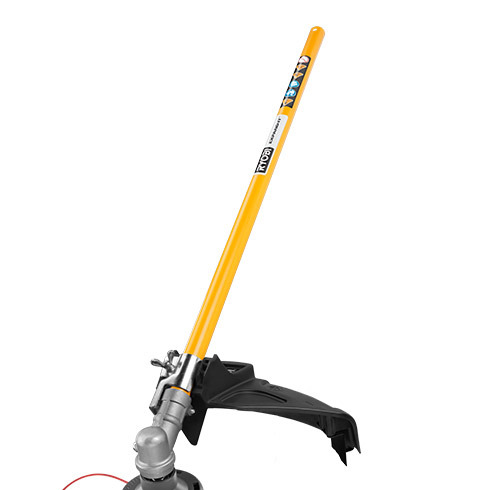

Straight Shaft Trimmer Attachment

Model: #RYSST44 | Home Depot Sku #: 1000665616

Buy at The Home Depot
Large a4e3de4b 2694 4ef3 8208 43e26ea8d26e
Large a0d7722f 1d81 4be4 93c2 4ec5143d975d
Large 5e5e19a9 056f 464b ae7d 37f620bd3e87
  • Tiny a4e3de4b 2694 4ef3 8208 43e26ea8d26e
  • Tiny a0d7722f 1d81 4be4 93c2 4ec5143d975d
  • Tiny 5e5e19a9 056f 464b ae7d 37f620bd3e87

The RYOBI Expand-It™ Straight Shaft String Trimmer Attachment works with any of the RYOBI power heads. Whether you prefer 2 Cycle or 4 Cycle gas, cordless or electric power, quickly attach the straight shaft trimmer to the bottom of your power head. The Straight Shaft attachment, backed by a RYOBI 3 year warranty, is perfect for trimming under benches and shrubs, around obstacles, and in hard to reach places. Save time, save money, save space.

  • share


Product Videos

×
Features
Specs
Includes
FAQ's
Manuals
Parts
List 31507bb5 4816 4a47 acec 1a28fd11c22a

Universal Brand Fit

List 76080c85 3713 4d4c 8597 49880f8a156e

18 in. cutting width with .080 in. dual line

List 5bb4621f cada 487f b94f 3f7f451df00c

Straight shaft for extended reach

List 713d43e0 1726 42b5 94c7 41230ac14e13

Includes bump feed string head

List af8ff273 38bf 4cb0 9f0b 2ecb160e2215

Requires no tools or adaptors

  • Cutting Path: 18 in cutting swath
  • String Diameter: .080 in. dual line Weight: 3.5 lbs.
  • Line Advancement: Bump Feed
  • Attachment Coupler: universal attachment coupler
  • Straight Shaft String Trimmer
  • Attachment Securing Cap
  • Operator’s Manual

How do I advance the line on my REEL-EASY™ String Head?

Line advance is controlled by tapping the string trimmer head on grass while running engine at full throttle

  • Run the engine at full throttle
  • Tap the knob on ground to advance line. The line advances each time the knob is tapped. Do not hold the knob on the ground

NOTE: The line trimming cut-off blade on the grass deflector will cut the line to the correct length

NOTE: If the line is worn too short, you may not be able to advance the string by tapping it on the ground. If so, stop the engine and manually advance the line.

How do I install my attachment to my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if using a RYOBI Gas Power Head); remove the battery (if using the RYOBI 40V Power Head).
  • Loosen the knob on the coupler of the power head shaft and remove the end cap from the attachment (black rubber piece with loop hole for hanging).
  • Push in the silver button located on the attachment shaft. Align the button with the guide recess on the Power Head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole.

NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.

  • Tighten the knob securely.

How do I manually advance the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will not be harmed
  • Push the knob in while pulling on line(s) to manually advance the line

How do I remove the attachment from my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if a gas unit), remove the battery (if using RYOBI 40V Power Head)
  • Loosen the knob at the connection point
  • Push in the button and twist the shafts to remove and separate the Power Head from the Attachment

How do I replace the line on my REEL-EASY™ String Head?

  • Stop the engine and disconnect the spark plug wire to ensure you will be safe while replacing the line.
  • Rotate the spool clockwise as necessary to align the arrows on the spool.
  • Cut one piece of trimmer line at approx. 20ft. in length. Insert the line in the eyelet on the string trimmer housing. Push until the end of the line comes out the opposite side of the string head. Pull the line from the other side until equal amounts of line are on both sides of the spool.
  • Rotate the spool clockwise to wind the line on the spool until approx. 6 in. of line is showing on each side.
  • Push the spool retainer down while pulling on line(s) to manually advance line and to check for proper assembly of the on the string head.

What is the best way to cut weeds and grass using my string trimmer?

  • Keep your string trimmer tilted toward the area being cut
  • Pass the unit from left to right (if using a curved shaft string trimmer) and from right to left (if using a straight shaft string trimmer). By following these directional cutting paths, you will avoid having debris and grass clippings from being directed back at yourself.
  • Use the top of the line to do the cutting. Do not force the string head into uncut grass; this could cause the trimmer to bog down.
  • Avoid trees, shrubs wire and picket fences.

Straight Shaft Trimmer Attachment - Model rysst44


Rysst44 090110013 562 trilingual 02
RYSST44_090110013_562_trilingual_02.pdf
Published: 03-31-2018
Filesize: 1.71 MB

Rysst44 090110013 562 r 02
RYSST44_090110013_562_r_02.pdf
Published: 06-24-2015
Filesize: 154 KB

Click the link below to access outdoor products replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4110, and place your order over the phone.

Visit Ryobi Outdoor Parts Store
