Pruner Attachment

Model: #RYPRN33 | Home Depot Sku #: 1000126178

Buy at The Home Depot
Large f6152656 d248 43ba 906a c9090a65077f
Large 1ff09a04 c132 4db7 992c 3ab1c784a3bf
Large 32564f6e 3709 4707 adf8 6532513f2f4c
Large b488eacd ef37 4deb a67d 4149f8b8d53d
  • Tiny f6152656 d248 43ba 906a c9090a65077f
  • Tiny 1ff09a04 c132 4db7 992c 3ab1c784a3bf
  • Tiny 32564f6e 3709 4707 adf8 6532513f2f4c
  • Tiny b488eacd ef37 4deb a67d 4149f8b8d53d

The RYOBI Expand-It™ Pruner Universal Attachment can power through hard to reach limbs with its 10 inch bar and chain and extension shaft. This attachment, backed by a RYOBI 3 year warranty, connects easily to a RYOBI power head bringing versatility and ease to your yard work. With its automatic lubricator, the RYOBI Pruner makes clean, crisp cuts through tree limbs, dead branches, and thick shrubs. Save time, save money, save space.

  • share


Product Videos

×
Features
Specs
Includes
FAQ's
Manuals
Parts
List 47b49559 2188 4d24 8d51 e8d92db2e4bc

Universal Brand Fit

List d1f64da4 8f9c 40a1 99d9 745839b41a5b

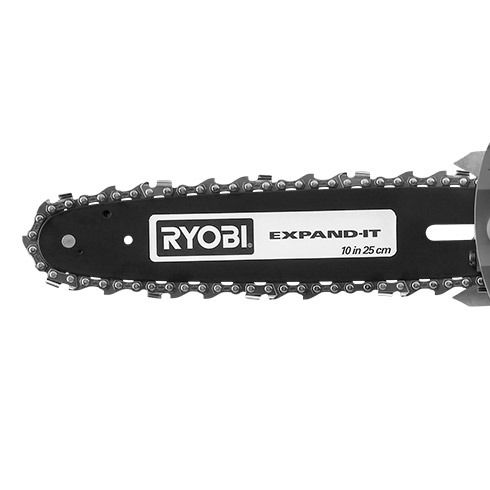

10 in. bar and chain and 6 in. cutting capacity

List 7c4f3f9c c5f8 4d03 b231 13b0359abfb4

Angled cutting head for better cut control

List 4d766bd3 d6b8 4dfa 9c2e 1ba863856760

Includes extension shaft for extra reach up to 12 ft.

List 1cc31f95 3024 460d a051 25d7b4b6c0f4

Automatic oiler for easy operation

List a8fc3625 07da 4ab0 b89b 33a8ada6ca0d

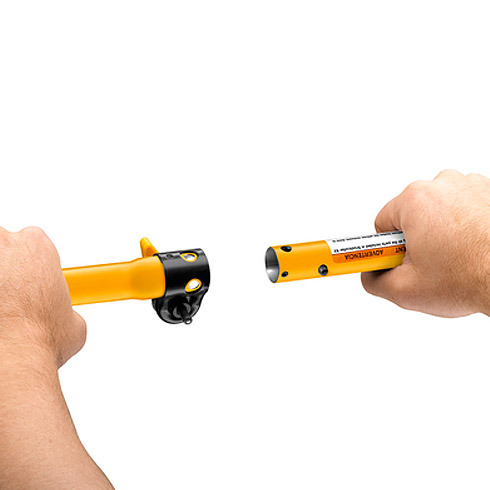

Requires no tools or adaptors

  • Bar & Chain: 10 in.
  • Extension Shaft: 12 ft. reach
  • Lubricator: Automatic Oiler
  • Cut Capacity: 6 inch diameter
  • Weight: 6 lbs.
  • Expand-It Pruner Attachment
  • Scabbard
  • Bar and Chain Lubricant
  • Combination Wrench
  • Extension Shaft
  • Shoulder Strap
  • Hanger Cap
  • Strap Hanger
  • Operator’s Manual

How do I install my attachment to my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if using a RYOBI Gas Power Head); remove the battery (if using the RYOBI 40V Power Head).
  • Loosen the knob on the coupler of the power head shaft and remove the end cap from the attachment (black rubber piece with loop hole for hanging).
  • Push in the silver button located on the attachment shaft. Align the button with the guide recess on the Power Head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole.

NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.

  • Tighten the knob securely.

How do I remove the attachment from my RYOBI Power Head?

  • Stop the engine and disconnect the spark plug (if a gas unit), remove the battery (if using RYOBI 40V Power Head)
  • Loosen the knob at the connection point
  • Push in the button and twist the shafts to remove and separate the Power Head from the Attachment

Pruner Attachment - Model ryprn33


Ryprn33 090112021 570 trilingual 03
RYPRN33_090112021_570_trilingual_03.pdf
Published: 05-31-2018
Filesize: 1.2 MB

Ryprn33 090112021 570 r 01
RYPRN33_090112021_570_r_01.pdf
Published: 06-02-2016
Filesize: 234 KB

Ryprn33 090112026 699 trilingual 01
RYPRN33_090112026_699_trilingual_01.pdf
Published: 12-20-2018
Filesize: 1.2 MB

Click the link below to access outdoor products replacement parts schematics and order parts online.

For those customers that prefer ordering by phone, simply contact the Ryobi master parts distributor at toll free 1-877-545-4110, and place your order over the phone.

Visit Ryobi Outdoor Parts Store
